585 Series Emergency Shut-Off Controller

Emergency shut-off controller for laboratory applications

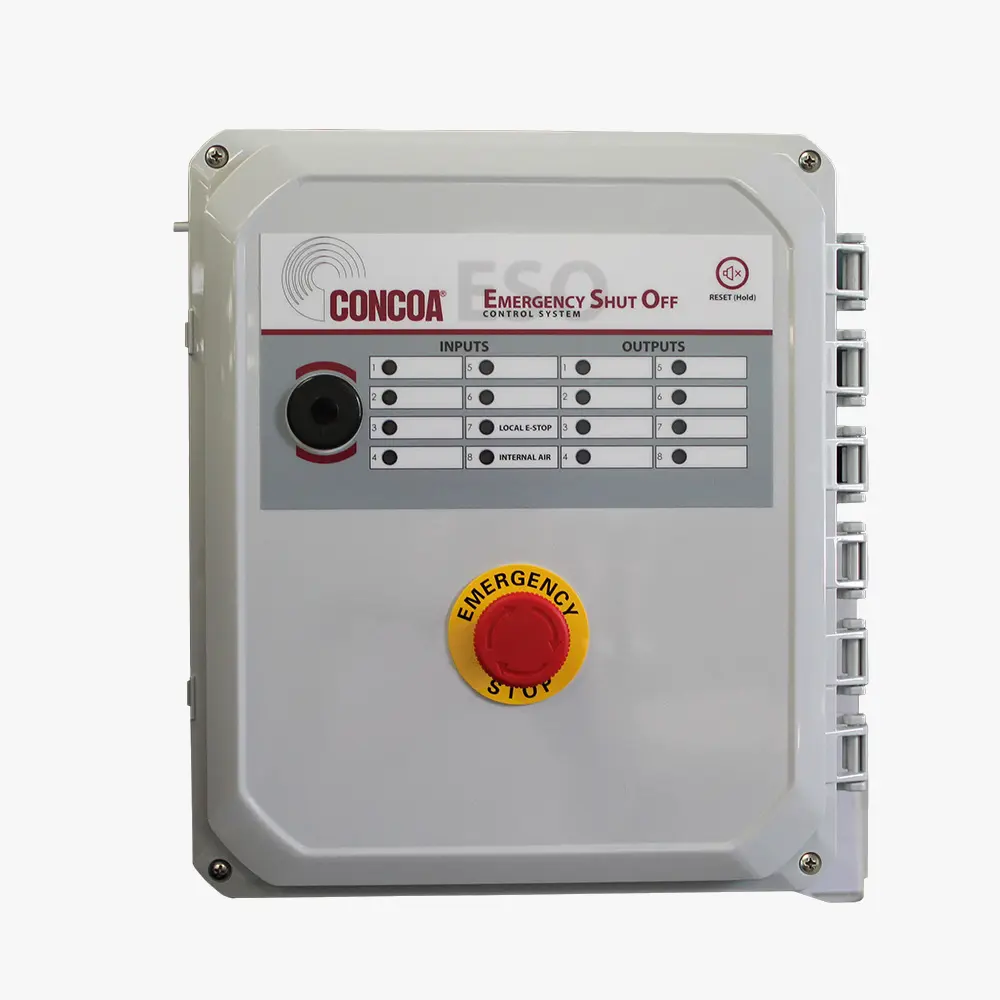

5851008-01-000 shown

The 585 Series Emergency Shut-Off Controller is designed to automatically shut down up to eight independent flammable, toxic, corrosive, or high purity gas sources based on inputs from up to six gas monitoring devices. The CONCOA emergency shut-off controller incorporates an emergency stop button, audible and visual alarm, and onboard web server with email and real-time display for remote gas monitoring and program status. It is field configurable and easy to reset to meet the changing needs of modern laboratories. Ideal for flammable or toxic gas shutdown control in the event of a fire or leak detection, the 585 Series emergency shut-off controller is designed for broad integration into a comprehensive facility safety program.

  • Highly programmable controller supports customization for application-specific installation
  • Eight-configurable, pneumatic valve outputs permit independent control of multiple gas streams
  • Six configurable input relays accommodate multiple hazard monitors independently
  • Onboard web and mail server enables remote monitoring and notification
  • 10,000 entry event log maintains an auditable trail of uptime and failure
  • Multicolor LEDs displays status of all eight inputs and outputs
  • Integral emergency stop button allows manual activation at the controller
  • Flame-retardant and UV stabilized enclosure ensures improved durability and sturdiness for longer service life
  • Sound: 93 dB audible alarm
  • Power input: 90-264 VAC external power supply (international adapters included)
  • Pneumatic outputs (8): 1/8 in FNPT bulkheads
  • Pneumatic inputs (1): 1/8 in FNPT
  • Dry contact relay outputs (9): 1 Master, (8) NO/NC (field adjustable)
  • Dry contact relay inputs (8): 6 NO/NC (field adjustable), 1 NC (emergency stop button), 1 NC (pneumatic air pressure switch)
  • Hose barbs: 1/8 in NPT male x 1/8 in ID hose (12 included)
  • Relay contact rating: 0.5A @24 VDC Max
  • Enclosure: UV rated UL94 V-0, UL746C 5VA polycarbonate resin
◂ scroll to see more ▸
Part Number Description
5851008-01-000 Emergency Shut-off Controller featuring Onboard Web and Mail Server
5851008-01-002 Emergency Shut-off Controller featuring Custom Factory Configuration for a Specific Application
5851999-01-000 Input Junction Box for Emergency Shut-Off Controller
◂ scroll to see more ▸
ID Number
585 Series Emergency Shut-Off Controllers Catalog Page
ESO Controllers Installation and Operation Instructions
ESO Controllers Configuration Instructions
CONCOA Cyclotron Gas Delivery Systems
CONCOA Safe Handling of Flammable Gases in Laboratories Brochure
