Active
580 Series Universal LEL Gas Detector
Universal LEL gas detector for flammable gases

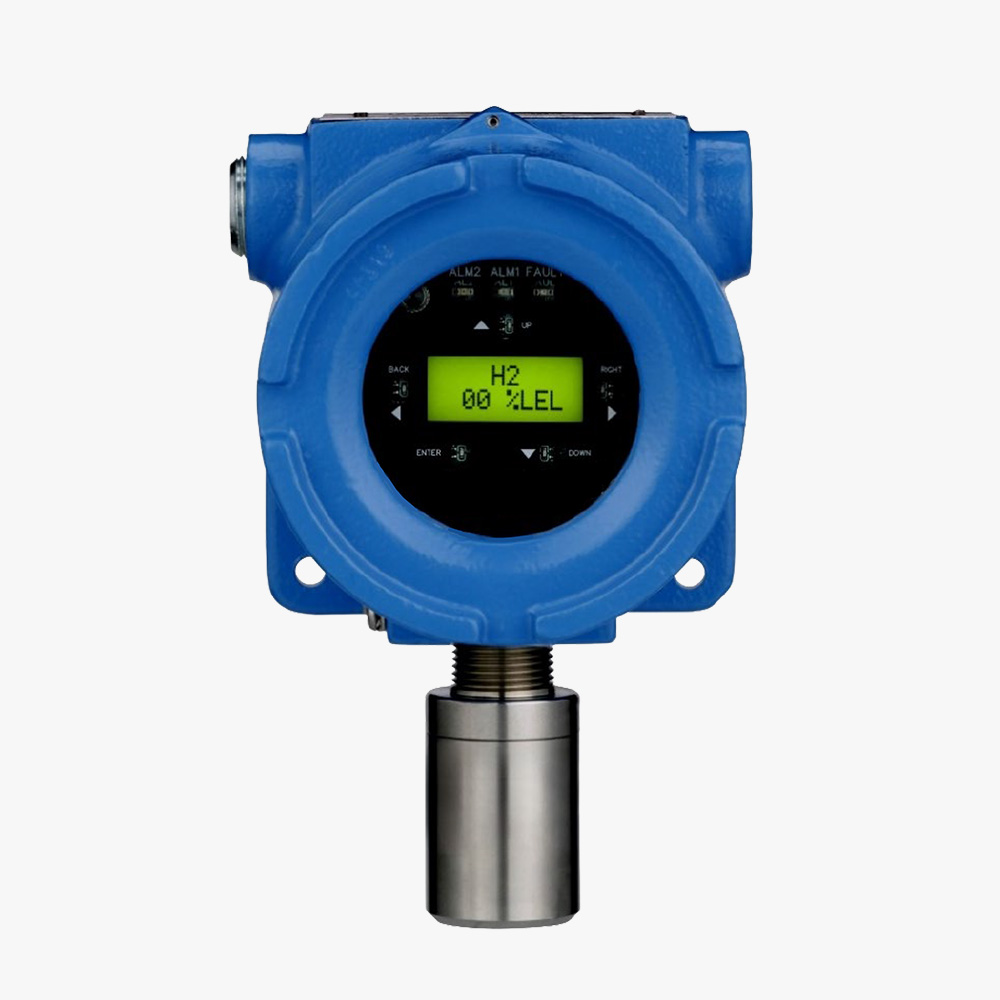

5803020-01-1 shown
The 580 Series Universal LEL Gas Detector is designed for continuous monitoring of flammable gases in hazardous environments. Using advanced Molecular Property Spectrometry (MPS) technology, the monitor quickly and accurately identifies, classifies, and quantifies over 14 gases, including hydrogen, methane, propane, and butane, with no false alarms or cross-sensitivity. The MPS sensor can assess flammable gas concentrations even in complex multi-gas environments. A large LCD display indicates real-time gas concentrations, and audible and visual alarms alert personnel when alarm thresholds are exceeded. The rugged, explosion-proof enclosure make it ideal for research and development, chemical processing, semiconductor manufacturing, laboratories, agricultural facilities, and other environments where combustible, toxic gases are used. The CONCOA 580 Series Universal LEL Gas Detector can operate as a standalone monitor or integrate with the 585 Series emergency shut-off controller, remote display, 4- or 8-channel controller, or other programmable system to form a comprehensive safety system.
- Advanced MPS sensor detects a wide range of gases and gas mixtures with a single sensor
- Factory calibration provides 15+ years of reliable performance without requiring any field calibration
- TrueLEL™ technology reliably measures the %LEL of both pure gases and gas mixtures
- Automatic self-testing electronics continuously monitors sensor performance and alerts user to any faults or electrical degradation
- Built-in environmental compensation maintains accuracy regardless of fluctuating temperature or humidity
- Menu-driven magnetic keypad allows full access without opening the enclosure
- User-adjustable dual alarm relays allow user to customize alarm thresholds
- Rugged, explosion-proof enclosure prevents internal explosion from escaping the instrument
