C-Series Gas Cabinet

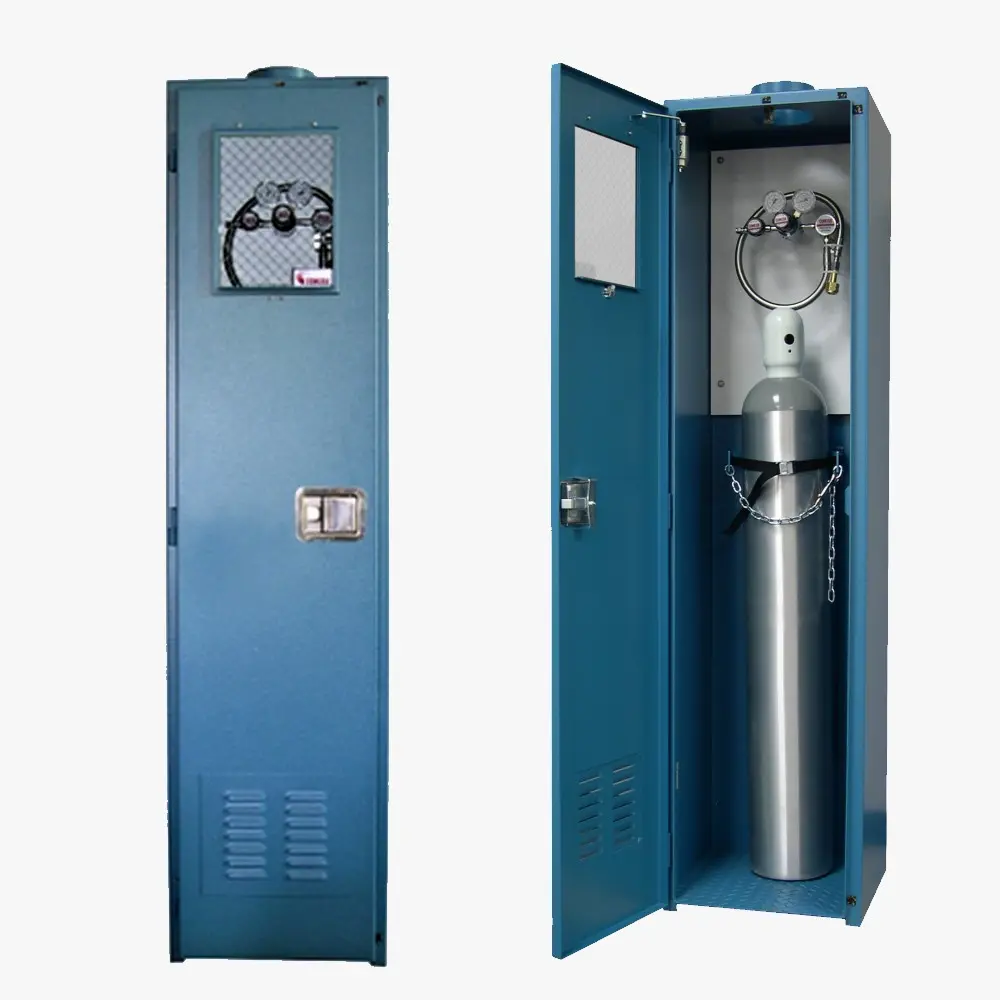

C-Series gas cabinet in a standard configuration for laboratory applications
C1-4222331-350M shown

The CONCOA C-Series Gas Cabinet System is intended to store and isolate toxic laboratory gases, thus preserving the safety of the working environment outside of the cabinet and conforming to the requirements of local fire codes. The vented gas cabinet provides a protective enclosure for gas cylinders, valves, regulators, and purge assemblies. To order any CONCOA protocol station, mounted regulator, or unenclosed pressure differential switchover fully assembled, functionally tested, and spectrometrically leak checked, simply prepend the part number with C1-, C2-, C3- or C4- depending on the desired cabinet size. For example, to order a 432 Series single station manifold for high purity hydrogen service mounted in a one-cylinder cabinet, specify C1-4323331-01-350M.

  • All welded, extra heavy-duty steel construction protects cylinders and valves from damage
  • Protective powder coating ensures chemical and rust resistance
  • Sprinkler head near exhaust vent bolsters isolated fire protection
  • Adjustable cylinder brackets allow for precise hose alignment
  • Automatic closing door with keyed door latch prevents unwanted access
  • Ventilation louvers provide cabinet interior with adequate airflow circulation
  • All stainless steel fasteners assure added durability and longevity
  • Material: 12-gauge steel (0.105 in)
  • Exhaust duct: 6 in (152 mm) diameter and 3 in (76 mm) high
  • Sprinkler activation point: 160°F - 165°F (71°C - 74°C)
  • Cylinder brackets: 7 in - 10 in (177 mm - 254 mm ) diameter, chain and strap included
  • Fire-rated window: 1/4 in clear wire glass
  • Fasteners: Stainless steel
◂ scroll to see more ▸

For ordering informationContact Us

◂ scroll to see more ▸
Document
Language
ID Number
Revision
Standard Gas Cabinets Catalog Page
English
RSCAB
AG
C-Series Gas Cabinets Installation and Operation
English
ADI0008
A
CONCOA Safe Handling of Flammable Gases in Laboratories Brochure
English
SPF650
C
