580 Series Excess Flow Switch

Excess flow switch for use with CONCOA 585 Series emergency shut-off controller

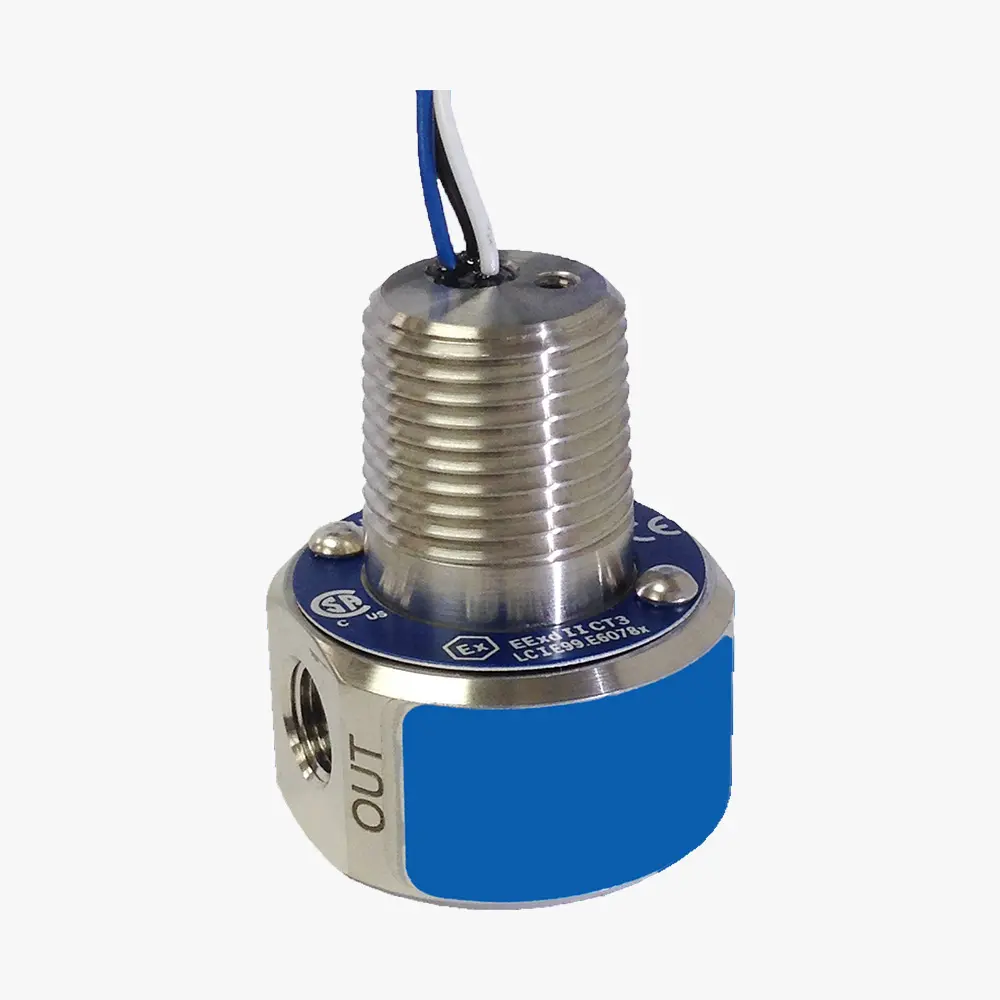

5804001 shown

The 580 Series Excess Flow Switch is designed to monitor and detect increasing flow rates of gases in critical processes. Unlike mechanical excess flow shut-off valves, shut-off initialized by an excess flow switch can easily be reset with a controller, such as the 585 Series emergency shut-off controller, without significant application disruption. When connected to the 585 Series ESO controller, excess flow switches monitor the rate of gas flow. If the flow reaches the pre-set flow rate, the flow switch triggers an action, such as "initiate alarm" or "initiate alarm and shutdown." Excess flow switches are tested and programmed at the factory but can be re-calibrated to the desired flow settings. CONCOA 580 Series excess flow switches ensure immediate shutdown of any gas line in the event of a pipeline break or excess flow condition.

  • All-wetted, stainless steel parts permit compatibility with any gas service
  • Range of flows and inlet pressures facilitates any installation requiring excess flow shutdown
  • Optional mounting bracket eases installation
  • Optional explosion-proof cap (5804002) increases safety in hazardous environments
  • Body and wetted parts: 316 stainless steel
  • Inlet/Outlet connections: 1/4 in FNPT
  • Seat: Kalrez®
  • Power: 3.30 VA max - 100 VDC; 2.46 VA max - 120 VAC
  • Gas service: Oxygen, flammable, and toxic/li>
  • Conformances: CE marked
◂ scroll to see more ▸
Part Number Description Max Inlet Pressure Flow Range
5804001 High Pressure, Low Flow Excess Flow Switch 3000 PSIG (210 BAR) .03 - 10 LPM (.06 SCFH - 21 SCFH)
5804002 Low Pressure, High Flow Excess Flow Switch 1000 PSIG (70 BAR) 1 - 120 LPM (2 SCFH - 254 SCFH)
5804003 High Pressure, High Flow Excess Flow Switch 3000 PSIG (210 BAR) 1 - 20 LPM (2 SCFH - 42 SCFH)
◂ scroll to see more ▸
ID Number
580 Excess Flow Switches Catalog Page
CONCOA Safe Handling of Flammable Gases in Laboratories Brochure
CONCOA Cyclotron Gas Delivery Systems
