560 Series Flowmeter

6-Inch (150 mm) variable area flowmeter for scientific gas applications

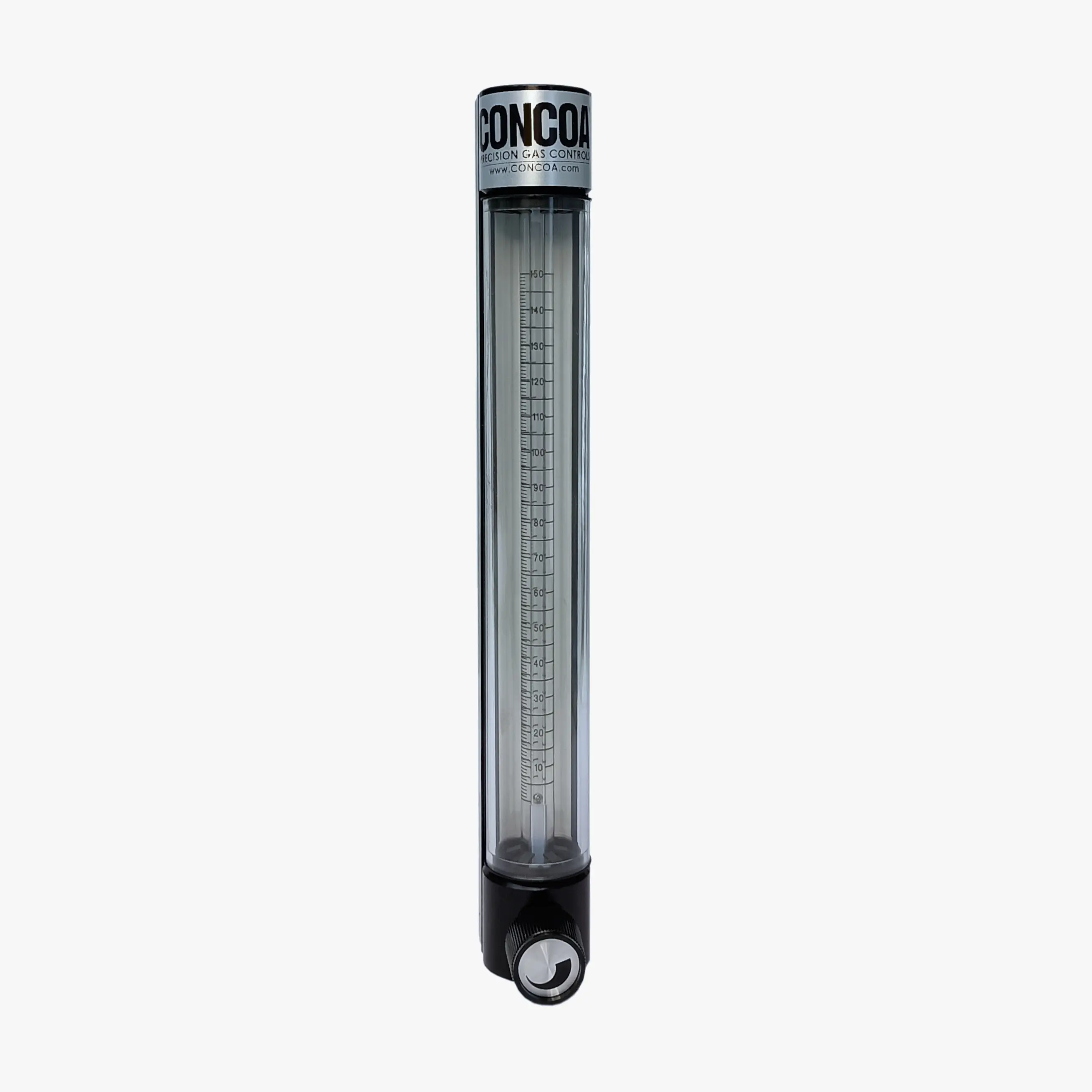

5603311-01-TF4 shown
6-Inch (150 mm) variable area flowmeter for scientific gas applications

The 560 Series Flowmeter offers inherent simplicity, versatility, and economy in a precision flow instrument. Flow readings from the uniformly calibrated millimeter scale are converted to actual flow using the flow calibration chart provided with the flow tube. The CONCOA 560 Series flowmeter provides optimum repeatability and reliability making it ideal for a wide range of chemical, petrochemical, biotechnology, and analytical applications.

Flowmeter Wizard - try the flowmeter wizard today!
  • Rib-guided tube internals provides precise stable flow readings
  • Rotating magnifier lens enhances reading resolution
  • Premium threaded insert permits reliable panel mounting
  • Field changeable flow tube promotes installation flexibility
  • Max pressure: 200 PSIG (14 BAR)
  • Flow tube: Heavy-walled borosilicate glass
  • Front shield: Polycarbonate
  • End connections: Brass or 316L stainless steel
  • Max temperature: 250°F (121°C)
  • Accuracy: ± 5% full scale
  • Repeatability: 0.25% full scale
  • Seals: FKM, EPDM (optional); or Kalrez® (optional)
◂ scroll to see more ▸

Determine part number tube (A) and float (B) from specific air flow


Flow Units





?
Tube Size (A)
Float Material (B)
Max Flow for float/tube (air, atmospheric conditions)

Max flow for float/tube (your parameters)

?
Scale Size
Frame Material (C)
Valve (D)
End Connection (CON)
?
?
Your CONCOA flowmeter part number is:
  - -
  - -
Please confirm the compatibility of any toxic or corrosive gas with CONCOA for the selected flowmeter before placing your order.

Flowmeter Wizard

This configurator may be used to help select a CONCOA flowmeter specific to your application. Tap or click the ? icons for help.

A CONCOA 560 Series flowmeter part number looks like this:
560 ABCD-01-CON

Example part numbers:
560 1200-01-000
560 4312-01-TF2
560 8210-01-HB4

First, select the major component of the mixture. Then, select one or more minor components from the right-hand side (scroll on mobile!) and enter the composition percentage.
Major Component
No minor gases selected yet.
Minor Components
 SG
 Weight (%)
Specific Gravity









A specific gravity of ___ will be used in the flowmeter wizard after clicking OK.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
560 Series Flowmeters Catalog Page
English
RS560FL
AG
Download
560 and 565 Series Flowmeters Installation and Operation Instructions
English
ADI3160
B
