567 Series Flowmeter

High flow, direct-read flowmeter for scientific gas applications

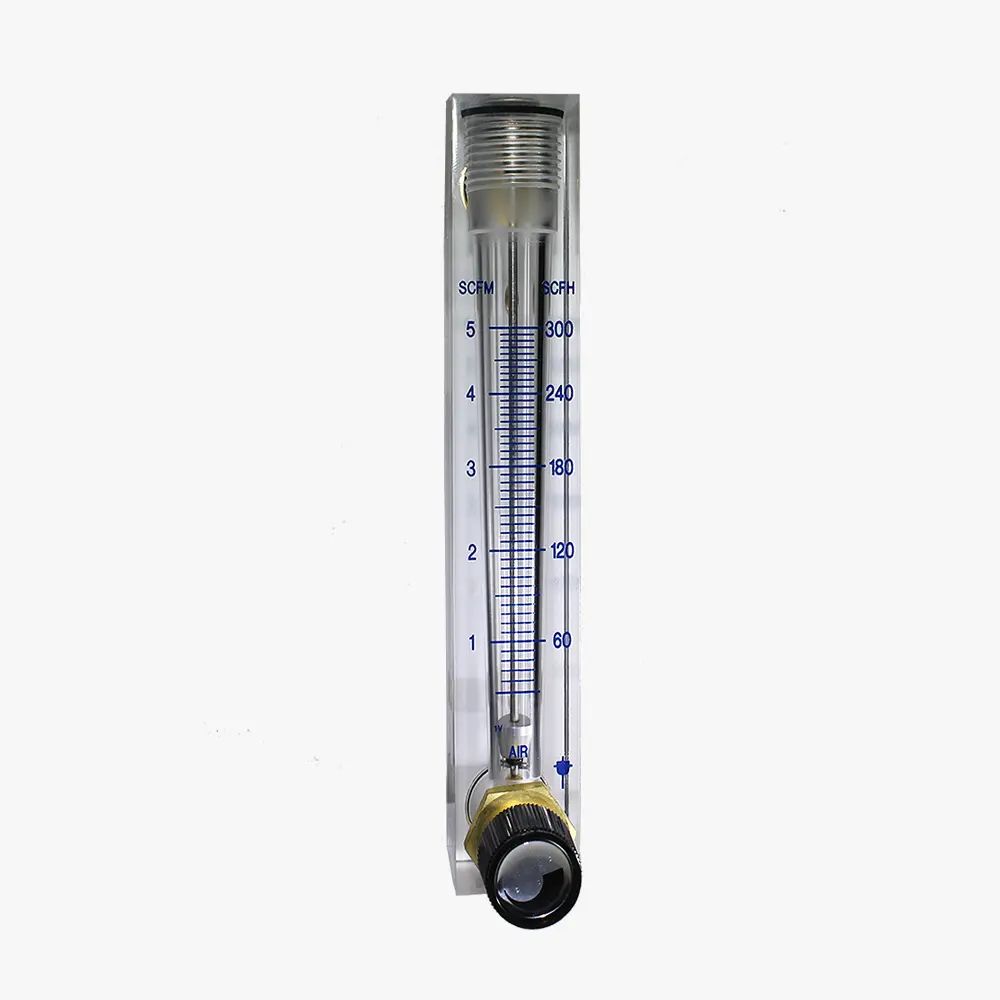

5671011-01-001 shown

The 567 Series flowmeter offers excellent accuracy at high flows. The 4 inch (102 mm) or 5 inch (127 mm) dual-scale (SCFM/SCFH) is calibrated in air and provides a simple and economical means of indicating flow rates. The 567 Series flowmeter is constructed on the variable area principle consisting of a uniformly tapered flow tube, a float, and a dual-scale. The control valve permits accurate flow control. For ease and convenience, the direct-read measurement scale on the tube displays actual flow at standard conditions in both English and metric units. The CONCOA 567 Series direct-read flowmeter is a reliable solution for non-corrosive and low-pressure analytical applications.

  • Direct-read, dual scale (SCFM/SCFH) flow tube provides high measurement accuracy
  • Durable uni-body acrylic construction eliminates leaks and panel detachment
  • Stanard cartridge-style valve or plastic in-line gate valve model ensures accurate flow control
  • Stable, easy-to-read float permits steady measurements
  • Body: Clear acrylic
  • Max pressure: 100 PSIG (7 BAR)
  • Max temperature: 150°F (65°C)
  • Connections: Brass or stainless steel; PVC (FNPT)
  • Seals and packing: Buna-N® (brass); PVC or FKM (stainless steel)
  • Accuracy: ± 3% full scale
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
ID Number
566 Series Purge Meter/567 Series Flowmeter Catalog Page
566 and 567 Flowmeters Installation and Operation
