566 Series Purge Meter

Direct-read purge meter for scientific gas applications

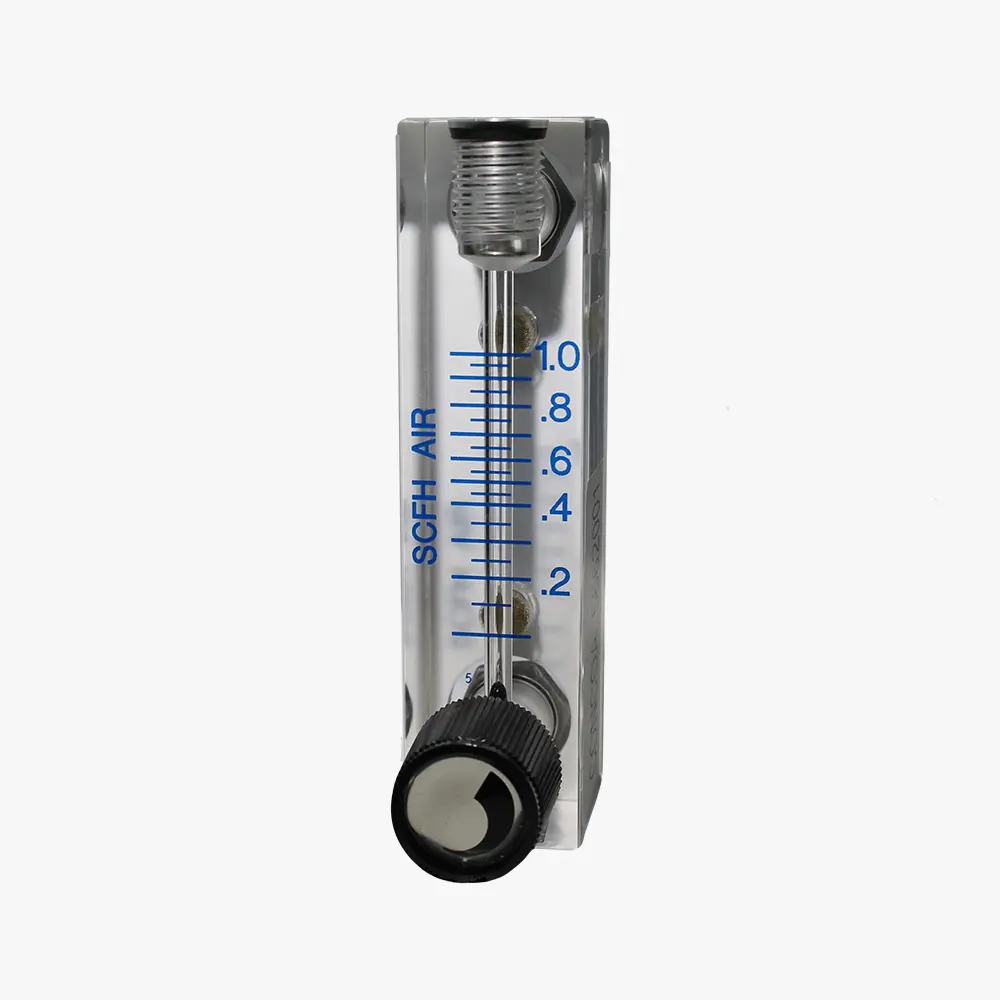

5662001 shown

The 566 Series Purge Meter is intended for noncorrosive gas service. The 2-inch (50 mm) direct-read scale is calibrated in SCFH, air. The purge meter is available with either brass or 316L stainless steel end fittings and a standard cartridge-style needle valve provides accurate and reliable flow control. Constructed from precision-machined acrylic, the CONCOA 566 Series purge meter provides a reliable and economical solution for low-pressure gas applications.

  • Direct-read SCFH (air) scale ensures high measurement accuracy
  • Durable uni-body acrylic construction eliminates leaks and panel detachment
  • Stable, easy-to-read float permits steady measurements
  • Body: Clear acrylic
  • Max pressure: 100 PSIG (7 BAR)
  • Max temperature: 150°F (65°C)
  • Connections: Brass or stainless steel; PVC (FNPT)
  • Seals and packing: Buna-N® (brass); PVC or FKM (stainless steel)
  • Accuracy: ± 3% full scale
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
566 Series Purge Meter/567 Series Flowmeter Catalog Page
English
RS566PM
AG
Download
566 and 567 Flowmeters Installation and Operation
English
ADI3165
A
