632 Series Switchover

Pressure differential switchover for high flow industrial gas applications

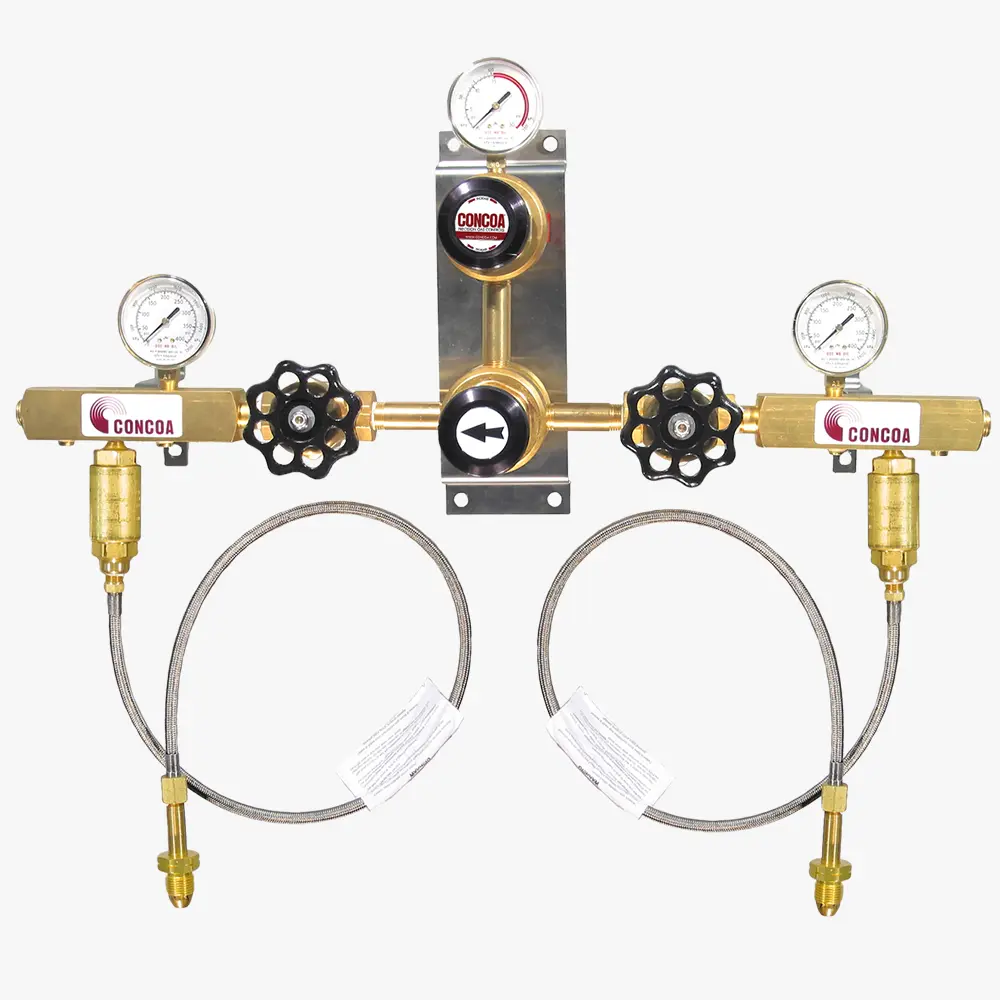

6321313-01-510 shown

The 632 Series Switchover is a cost-effective solution for high flow industrial applications. The switchover utilizes a simplistic pressure differential switching mechanism that provides a continuous supply of gas without electricity. CONCOA 632 Series pressure differential switchover is designed to distribute gaseous products from either liquid cans or high pressure cylinders with a maximum inlet pressure of 4500 PSIG (310 BAR). Options include a 1000-watt heater for carbon dioxide, an intrinsic safety barrier for hydrogen service, or a remote alarm for advance notification of switchover.

Features

Semi-automatic pressure differential switchover ensures uninterrupted gas supply
Integral 6700 regulator permits high flow capacity
Pressure ranges from 0-15 PSIG (0-1 BAR) to 0-150 PSIG (0-10 BAR) support a broad range of applications
Optional remote alarm provides visual and audible notification of cylinder depletion for continuous system operation.
Optional micromanifold system facilitates installation and expansion

Specifications

Max inlet pressure: 3000 PSIG (210 BAR); 4500 PSIG (310 BAR) optional
Temperature range: -40°F to 140°F (-40°C to 60°C)
Max flow: 5000 SCFH (2360 LPM)
Inlet/Outlet connections: 1/2 in FNPT
Weight: 54 lbs (25 kg)
Priority valve and line regulator bodies: Brass barstock
Diaphragms: Fabric-reinforced chloroprene
Tubing and connections: brass
Internal seals: Chloroprene, PTFE, and FKM
Seats: Chloroprene, PTFE, PCTFE, FKM, and EPDM
Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OF11809.2; CRN OH15806.5

Ordering Information

◂ scroll to see more ▸

See catalog page for ordering information.

Product Documents

◂ scroll to see more ▸

Document

Language

ID Number

Revision

Download

632 Series Pressure Differential Switchovers Catalog Page

English

IN632PD

Download

632 Series Gas Distribution Systems Installation and Operation

English

ADI3223

Download

CRN File OH15806

English

CRNOH15806

Download

CRN File OF11809

English

CRNOF11809
