605 Series Manifold Regulator

High flow manifold regulator for industrial laser process gases

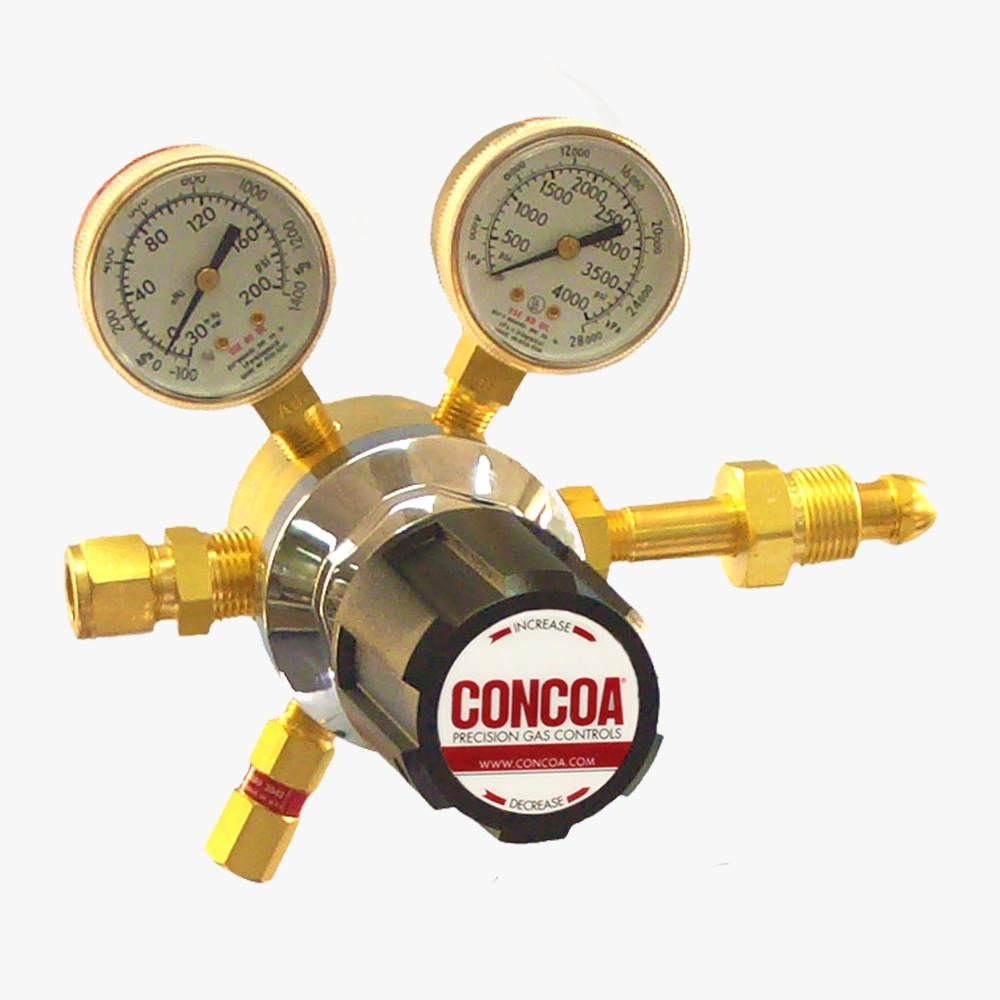

6053311-01-580 shown

The 605 Series regulator is intended for pressure control at the source of either liquid or high pressure cylinders for applications with pressure requirements up to 250 PSIG (17 BAR).

  • Stainless steel diaphragm ensures high purity design
  • 40-micron stainless steel internal filter limits the possibility of gas contamination
  • Balanced stem seat design maintains constant delivery pressure
  • Max inlet pressure: 3000 PSIG (210 BAR)
  • Body: Brass barstock
  • Bonnet: Chrome-plated, die-cast zinc
  • Diaphragm: 316L stainless steel
  • Gauges: 2 in (50 mm) diameter brass
  • Seat: PCTFE
  • Filter: 40-micron 316L stainless steel
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Inlet/Outlet connections: 1/2 in FNPT; 1/4 in FNPT (gauges)
  • Cv: 2.3
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Internal seals: PTFE
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; ANSI/ASME B40.1; CRN OH5216.5R2
◂ scroll to see more ▸

See catalog page for ordering information.
