580 Series Explosion Proof Carbon Monoxide Detector

Explosion proof detector for carbon monoxide (CO)

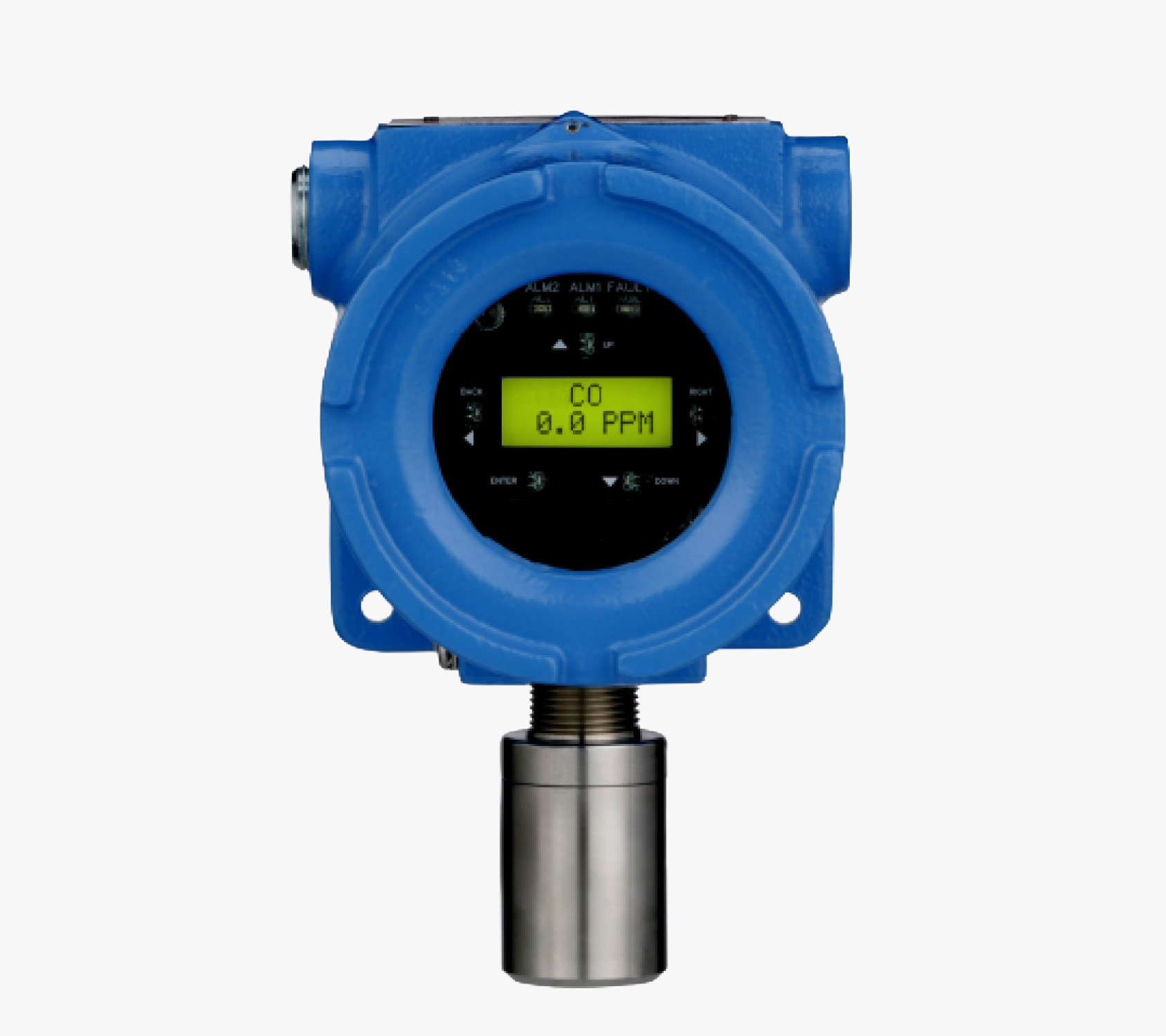

5803021-01-1 shown
Fixed point gas detector for flammable gas detection

The 580 Series Explosion Proof Carbon (CO) Monoxide Gas Detector accurately measures low levels of toxic and combustible gases in 0-100 parts-per-million (PPM). The CO Gas Monitor is ideal for environments where carbon monoxide is used, stored, may accumulate, or is present during production processes. Featuring an RS-485 interface, the monitor can be easily connected to multiple gas monitors, a variety of CONCOA pressure and flow controls for emergency shut-off, or connected to a facilities existing programmable Logic Controller (PLC). This ensures reliable centralized monitoring and the precise location of a detected leak across a fully networked installation.

  • Digital LCD Display indicates current gas concentration level
  • Self-testing smart electronics monitor sensor operation and alerts user to sensor faults or electrical degradation
  • Magnetic wand interface allows safe access to menus and settings without opening the enclosure
  • Built-in environmental compensation maintains accuracy regardless of fluctuating temperature or humidity
  • User-adjustable dual alarm relays allow user to customize alarm thresholds
  • Flow control microprocessor continually monitors and controls sample flow to the monitor
  • Rugged, explosion-proof enclosure prevents internal explosion from escaping the instrument
  • Built-in non-latching alarm resets automatically when oxygen levels return to above the alarm threshold
  • Optional remote digital alarm Indicator mirrors the monitor's display to provide remote system status and alarm information
  • Sensor type: Electrochemical (EC)
  • Sampling Method: Diffusion
  • Gas detected: Carbon monoxide
  • Display: Back-lit LCD
  • Range: 0 - 100 PPM
  • Response time: <60 seconds
  • Sensor life: 3 - 5 years under normal conditions
  • Analog output: 4-20 mA
  • Relay outputs: Two user-settable alarm relays, 1 fault relay rated ≤ 2A @ ≤ 24 VDC
  • Power requirements: 24 VDC, 200 mA
  • Enclosure: NEMA 4X Explosion-proof enclosure suitable for class I div 1&2 groups B, C, D, class II groups E, F, G, class III
  • Operating temperature: -4°F to 122°F (-20°C to 50°C)
  • Weight: 6.5 lbs (3 kg)
  • Conformances: UL/cUL; IP66 (enclosure)
◂ scroll to see more ▸
Part NumberDescription
5803021-01-1580 Series Explosion Proof Carbon Monoxide PPM Detector/Transmitter (power supply cable required, not included)
5803045-01-1 Remote Display Alarm Indicator (for use with 580 3021-01-1 Carbon Monoxide PPM Detector only)
5803058-01-18-channel Controller for 580 Series Gas Detectors and Oxygen Monitors
8355205-01-124 VDC Power Supply Cable Assembly for 580 3020 Universal LEL Gas Detector and 580 3021 Carbon Monoxide PPM Detector
8355206-01-1 Extender Cable for 580 3020 Universal LEL Gas Detector and 580 3021 Carbon Monoxide PPM Detector
8355207-01-1 Signal Cable for 580 3020 Universal LEL Gas Detector and 580 3021 Carbon Monoxide PPM Detector
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
580 Series Carbon Monoxide Detector Catalog Page
English
RS580CODET
AH
Download
580 Series Remote Display Catalog Page
English
RS_580RD
AH
Download
Remote Display Alarm Indicator for Carbon Monoxide Monitors Installation and Operation Instructions
English
ADI5778
A
Download
CONCOA Safe Handling of Flammable Gases in Laboratories Brochure
English
SPF650
C
