Active
580 Series Flammable Gas Detector
Fixed point gas detector for flammable gas detection

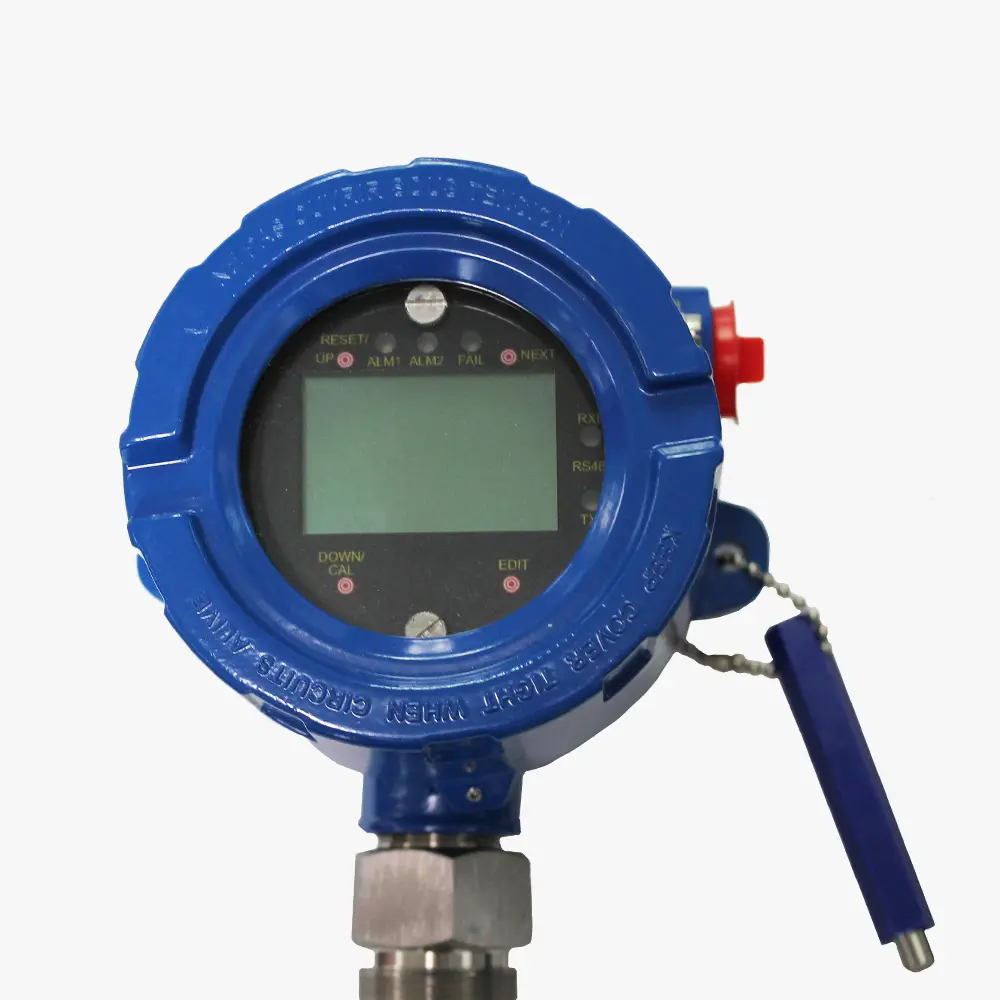

5803012-01-1 shown
The 580 Series Flammable Gas Detector is designed to continuously monitor and detect flammable and combustible gases in hazardous areas. The monitor incorporates sophisticated electronics that, when used in conjunction with the 585 Series emergency shut-off controller or a distributive control system, enable the user to quickly identify and correct major system faults. The CONCOA 580 series flammable gas detector includes analog and digital outputs for integration with the 585 Series emergency shut-off controller or other gas monitoring system in order to detect the location of any leakage, measure gas concentrations, and secure worker safety.
- Digital LCD display indicates current gas concentration level
- Fault supervision circuitry continuously monitors for failed sensor cell and communication line breaks
- Disposable electrochemical or LEL catalytic bead sensor provides 2-5 years of service in a normal environment
- Explosion-proof enclosure prevents internal explosion from escaping the instrument
- Sampling method: Diffusion
- Sensor type: Disposable electrochemical or LEL catalytic bead
- Accuracy: ±10% of reading
- Operating temperature: -40°F to 122°F (-40°C to 50°C)
- Analog output: 4-20 mA
- Relay output: Dual level
- Enclosure: NEMA 7 Explosion-proof enclosure suitable for class 1, division 1 and 2, groups A, B, C, and D
- Weight: 4.7 lbs (2.1 kg)
- Power requirement: 95mA @ 24 VDC
◂ scroll to see more ▸
| Part Number | Description |
|---|---|
| 5803012-01-1 | 580 Series LEL Detector/Transmitter for Hydrogen/Deuterium |
| 5803013-01-1 | 580 Series LEL Detector/Transmitter for Methane |
| 5803014-01-1 | 580 Series LEL Dual Sensor Head Detector featuring One 0-100 PPM Detector/Transmitter for Carbon Monoxide and One LEL Detector/Transmitter for General Flammable Gases |
| 5803015-01-1 | 580 Series LEL Detector/Transmitter for Propane |
| 5803016-01-1 | 580 Series LEL Detector/Transmitter for Acetylene |
| 5803017-01-1 | 580 Series LEL Detector/Transmitter for Ethane |
| 5803018-01-1 | 580 Series LEL Detector/Transmitter for Ethylene |
| 5803019-01-1 | 580 Series LEL Detector/Transmitter for Butane |
| 5803044-01-1 | 580 Series PPM Detector/Transmitter for Carbon Monoxide |
| 5803045-01-1 | 580 Series Remote Display Alarm Indicator (only for use with 5803044-01-1 Detector/Transmitter for Carbon Monoxide) |
| 5803054-01-1 | 580 Series 4-channel Controller for Gas Detectors and Oxygen Monitors |
| 5803058-01-1 | 580 Series 8-channel Controller for Gas Detectors and Oxygen Monitors |
| 5803099-01-1 | 580 Series Calibration Gas Cap |
| 8355205-01-1 | 24 VDC Power Supply Unit |
◂ scroll to see more ▸
Document
Language
ID Number
Revision
Remote Display Alarm Indicator for Carbon Monoxide Monitors Installation and Operation
English
ADI5778
A
