P3 High Flow Central Gas Supply Panel

High flow central gas supply panel for high purity gases featuring 400 Series regulators
P3B43210-01-001 shown

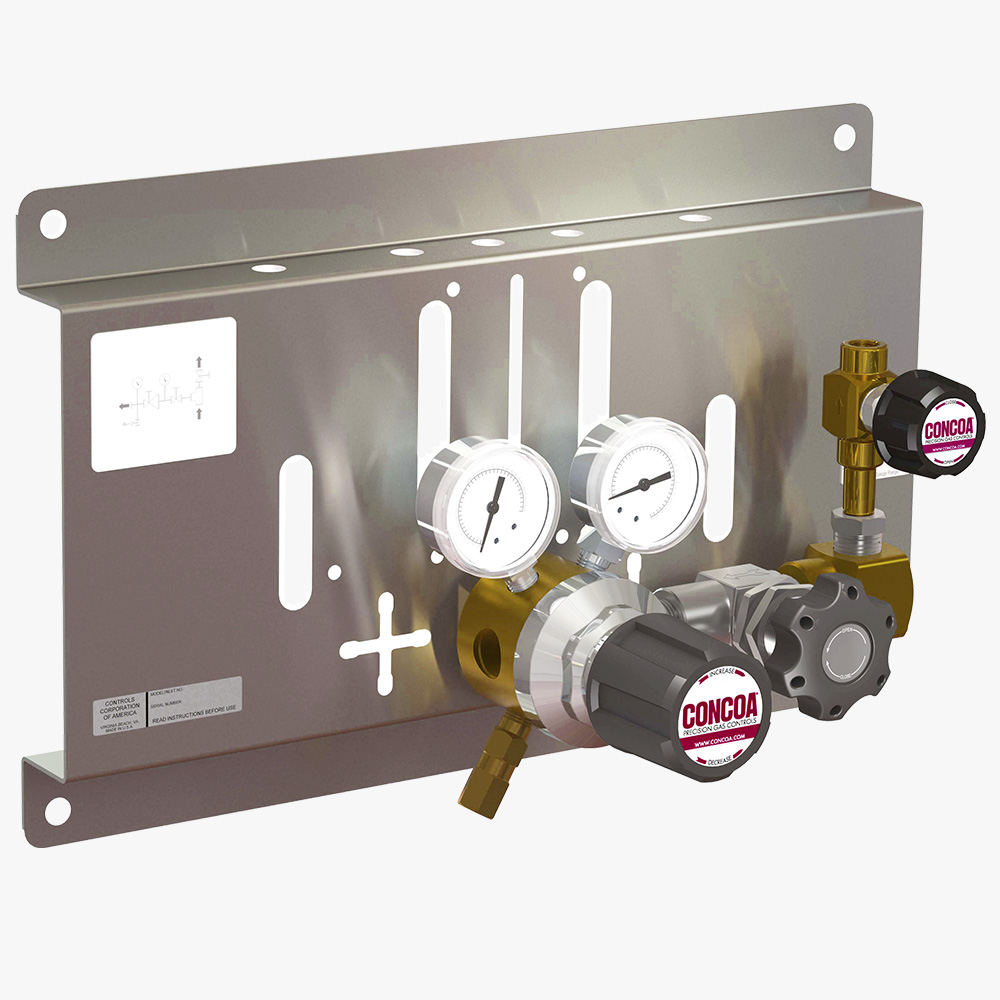

P3B43210-01-001 P3 high flow central gas supply panel

The P3 High Flow Central Gas Supply Panel is designed for primary pressure control from two sources, such as single cylinders or cylinder bundles. The panel provides a modular design to mount and locate the ultra-high purity 400 Series single stage regulator. The P3 Gas Supply Panel is available with either a brass barstock regulator (P3B) for use with research and ultra-high purity gases (up to grade 6.0+), or a stainless steel regulator (P3S) for use with toxic, corrosive, or reactive gases. Integrated full-flow process purge and low flow micro-purge options provide maximum system flexibility for various application requirements. Manufactured in an ISO 9001:2015 certified facility, each P3 panel is 100% Helium leak checked and cleaned for oxygen service.

  • Modular stainless steel panel with optional piped-through outlet permits flexible installation and operation
  • Metal-to-metal seals ensure high leak integrity and prevent contamination
  • A variety of outlet pressures and orientations support a broad range of applications
  • CAPSULE® seat design with 10-micron filtration provides long service life and reliable performance
  • Stainless steel convoluted diaphragm prevents inboard diffusion
  • Pipe away relief valve vents exhaust gas safely
  • Max inlet pressure: 3000 PSIG (210 BAR) regulator; 3500 PSIG (240 BAR) diaphragm valves
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Cv: 0.1
  • Body (regulator and valves): 316L stainless steel barstock (P3S); Brass barstock (P3B)
  • Bonnet: Chrome-plated die-cast zinc
  • Gauges: 2 in (50 mm) diameter and stainless steel case with stainless steel stem and tube (P3S);
    or plated brass case with plated brass stem and copper alloy tube (P3B)
  • Seat (regulator and valve): PCTFE
  • Filter: 40-micron 316L stainless steel
  • Diaphragm: 316L stainless steel (regulator); Elgiloy® (valves)
  • Seals: Metal-to-metal
  • Panel: 2mm 304 stainless steel
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216.5
◂ scroll to see more ▸

See catalog page for ordering information.

◂ scroll to see more ▸
Document
Language
ID Number
Revision
Download
CONCOA P3 High Flow Central Gas Supply Panels Brochure
English
SPF153
C
Download
P3 Series High Flow Panel Regulators Installation and Operating Instructions
English
ADI1013
A
Download
CRN File OH5216
English
CRNOH5216
26
