Active
P1 400 Series Central Gas Supply Panel
Gas supply panel for high purity gases featuring 400 Series regulators

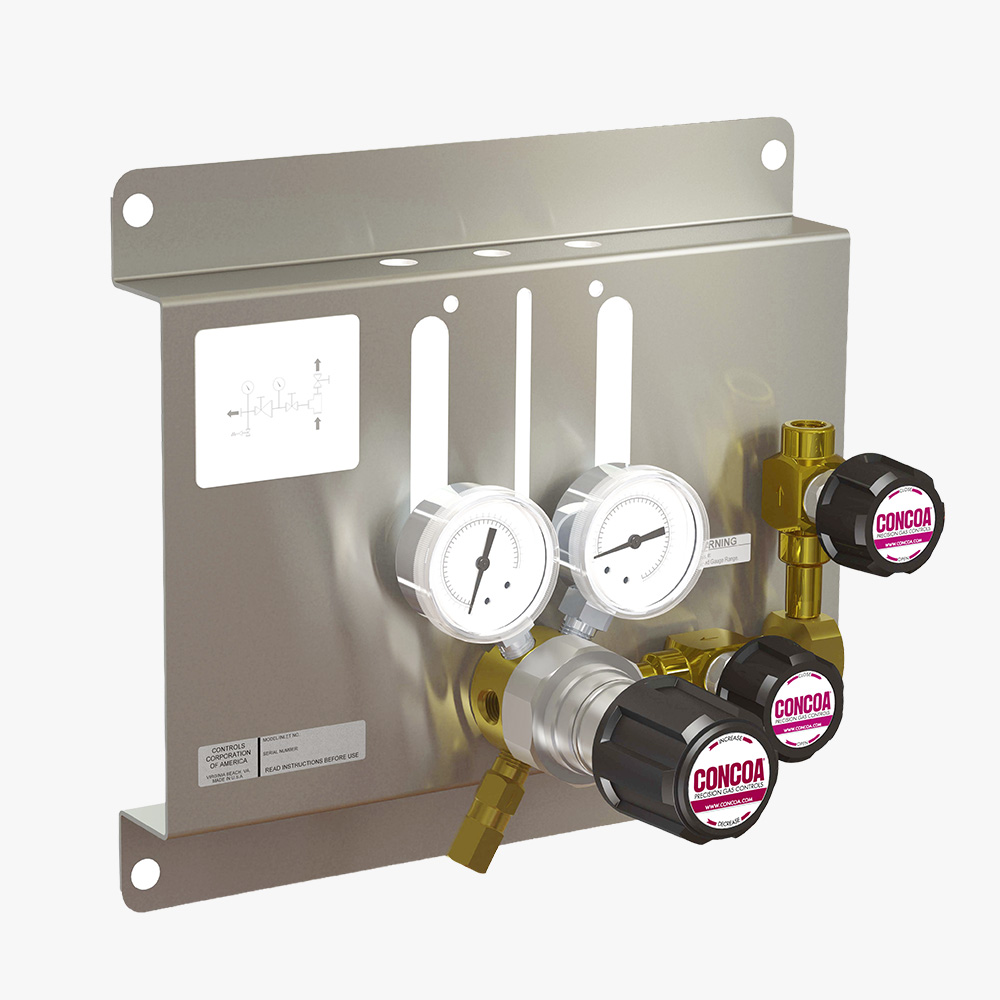

P1S4321-01-001 shown
The P1 400 Series Central Gas Supply Panel is designed for primary pressure control from single cylinders or cylinder bundles. The panel provides a modular design to mount and locate the 400 Series ultra-high purity single stage regulator. The P1 Gas Supply Panel is available with either a brass barstock regulator (P1B) for use with research and ultra-high purity gases (up to grade 6.0+), or a stainless steel regulator (P1S) for use with toxic, corrosive, or reactive gases. All P Series Gas Supply Panels are manufactured in an ISO 9001:2015 certified facility, 100% Helium leak checked, and cleaned specifically for oxygen service applications.
- Modular stainless steel panel with optional piped-through outlet permits flexible installation and operation
- Metal-to-metal seals ensure high leak integrity and prevent contamination
- A variety of outlet pressures and orientations support a broad range of applications
- CAPSULE® seat design with 10-micron filtration provides long service life and reliable performance
- Stainless steel convoluted diaphragm prevents inboard diffusion
- Integral process purge or inert gas micro purge options maintain gas purity and extend equipment life
- Pipe away relief valve vents exhaust gas safely
401 Series Regulator
Six-port, chrome-plated brass barstock, single stage cylinder regulator for ultra-high purity inert gas applications
422 Series Regulator
Six-port, single stage, stainless steel cylinder regulator for ultra-high purity gas applications
P2 400 Series Central Gas Manual Switchover Panel
Manual switchover panel for high purity gases featuring 400 Series regulators
P3 High Flow Central Gas Supply Panel
High flow central gas supply panel for high purity gases featuring 400 Series regulators
P4 Series High Flow Central Gas Manual Switchover Panel
High flow manual switchover panel for high purity gases
P5 400 Series Automatic Gas Switchover Panel
Automatic gas switchover panel for high purity gases featuring 400 Series regulators
PT 400 Series Central Gas Supply Panel
Dual stage gas supply panel for high purity gases featuring 400 Series regulators
