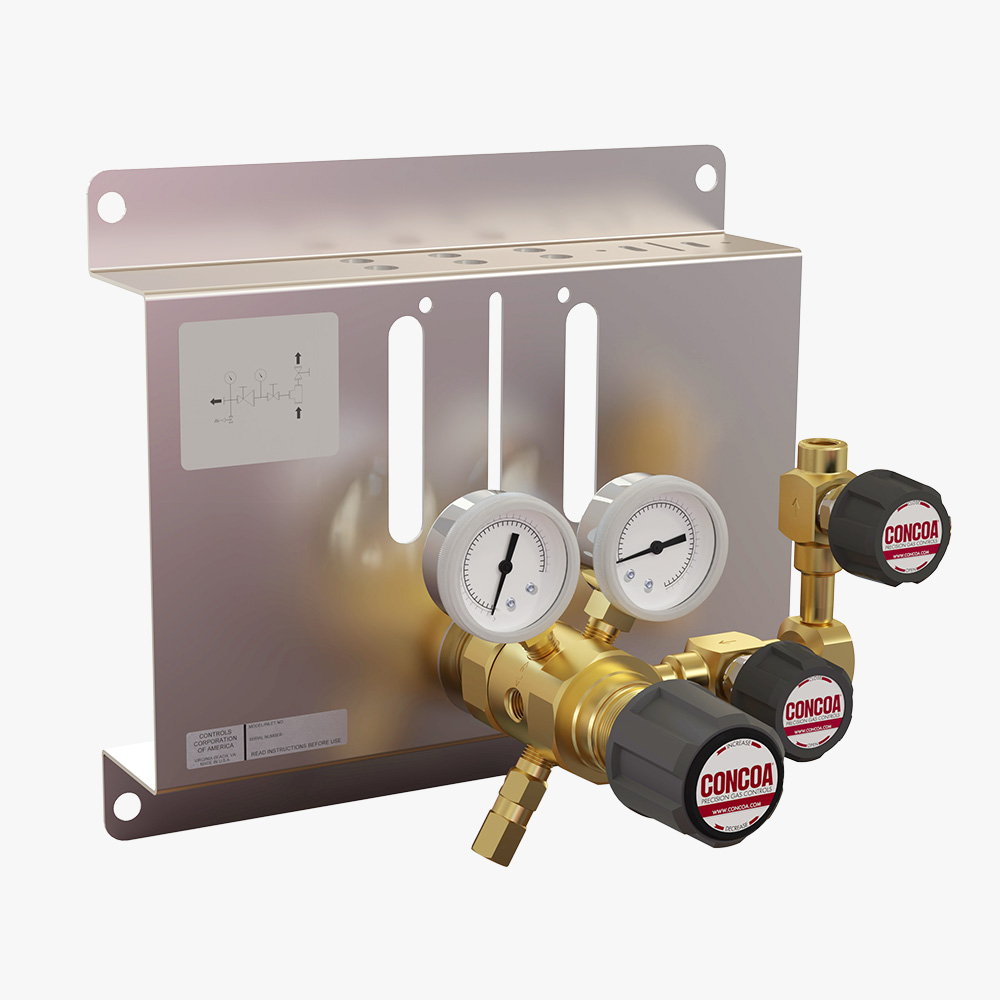

PT 400 Series Central Gas Supply Panel
Dual stage gas supply panel for high purity gases featuring 400 Series regulators
PT S432D0-01-001
The PT 400 Series Central Gas Supply Panel is engineered for primary pressure control from single cylinders or cylinder bundles. Featuring high purity 400 Series dual stage regulators, the system minimizes pressure variation that typically arises from inlet pressure changes, such as those caused by supply cylinder depletion. The PT panel is available with either a brass barstock regulator (PTB) for use with research and ultra-high purity gases (up to grade 6.0+), or a stainless steel regulator (PTS) for use with toxic, corrosive, or reactive gases. All PT panels are manufactured in an ISO 9001:2015 certified facility, 100% Helium leak checked, and cleaned for oxygen service.
- Modular stainless steel panel with optional piped-through outlet permits flexible installation and operation
- Metal-to-metal seals ensure high leak integrity and prevent contamination
- A variety of outlet pressures and orientations support a broad range of applications
- CAPSULE® seat design with 10-micron filtration provides long service life and reliable performance
- Stainless steel convoluted diaphragm prevents inboard diffusion
- Integral process purge or inert gas micro purge options maintain gas purity and extend equipment life
- Pipe away relief valve vents exhaust gas safely
412 Series Regulator
Six-port, bare brass barstock, dual stage cylinder regulator for ultra-high purity inert gas applications
432 Series Regulator
Six-port, stainless steel barstock, dual stage cylinder regulator for ultra-high purity gas applications
P1 400 Series Central Gas Supply Panel
Gas supply panel for high purity gases featuring 400 Series regulators
P2 400 Series Central Gas Manual Switchover Panel
Manual switchover panel for high purity gases featuring 400 Series regulators
P3 High Flow Central Gas Supply Panel
High flow central gas supply panel for high purity gases featuring 400 Series regulators
P4 Series High Flow Central Gas Manual Switchover Panel
High flow manual switchover panel for high purity gases
P5 400 Series Automatic Gas Switchover Panel
Automatic gas switchover panel for high purity gases featuring 400 Series regulators
