P5 400 Series Automatic Gas Switchover Panel

Automatic gas switchover panel for high purity gases featuring 400 Series regulators
P4B43210-01-001 shown

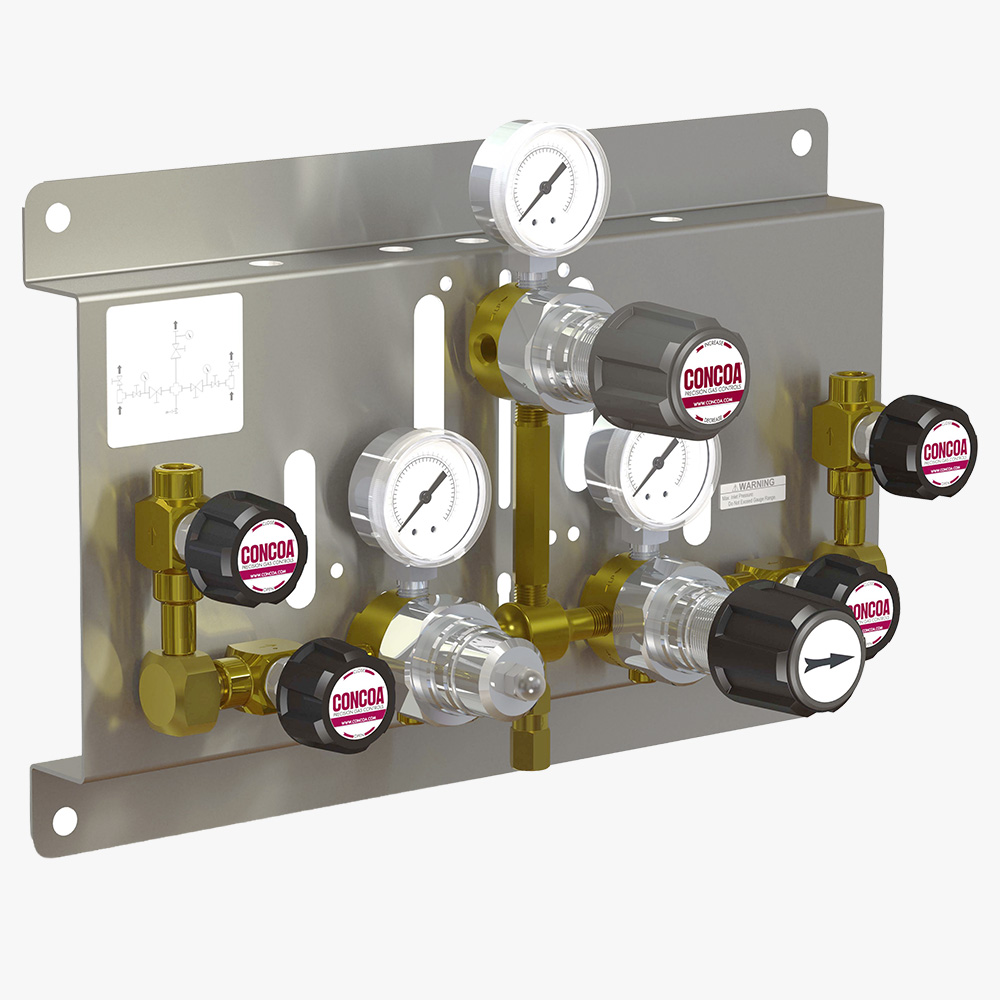

P5B43210-01-001 P5 automatic gas switchover panel for high purity gas

The P5 400 Series Automatic Gas Switchover Panel is designed to provide a seamless flow of gas from two sources such as single cylinders or cylinder bundles without user intervention. The P5 Automatic Switchover Panel is available with either a brass barstock regulator (P5B) for use with research and ultra-high purity gases (up to grade 6.0+), or a stainless steel regulator (P5S) for use with toxic, corrosive, or reactive gases. Integrated purge options, such as full-flow process purge and low flow micro-purge offer enhanced system flexibility for various application requirements. Manufactured in an ISO 9001:2015 certified facility, each P5 panel is 100% Helium leak checked and cleaned for oxygen service.

  • Pressure differential switchover provides uninterrupted gas supply
  • Integral process purge or inert gas micro purge options maintain gas purity and extend equipment life
  • Metal-to-metal seals ensure high leak integrity and prevent contamination
  • Variety of outlet pressures and orientations support a broad range of applications
  • CAPSULE® seat design with 10-micron filtration provides long service life and reliable performance
  • Stainless steel convoluted diaphragm prevents inboard diffusion
  • Modular stainless steel panel with optional piped-through outlet permits flexible installation and operation
  • Max inlet pressure: 4500 PSIG (310 BAR) regulator; 3500 PSIG (240 BAR) diaphragm valves
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Cv: 0.1
  • Body (regulator and valves): 316L stainless steel barstock (P5S); Brass barstock (P5B)
  • Bonnet: Chrome-plated brass barstock
  • Gauges: 2 in (50 mm) diameter and stainless steel case with stainless steel stem and tube (P5S);
    or plated brass case with plated brass stem and copper alloy tube (P5B)
  • Seat (regulator and valves): PCTFE
  • Diaphragm: 316L stainless steel (regulator); Elgiloy® (valves)
  • Filter: 10-micron 316L stainless steel (P5S); or sintered bronze (P5B)
  • Seals: Metal-to-metal
  • Inlet connections: 1/4 in FNPT
  • Panel: 14-gauge 304 stainless steel
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216.5
