P4 Series High Flow Central Gas Manual Switchover Panel

High flow manual switchover panel for high purity gases

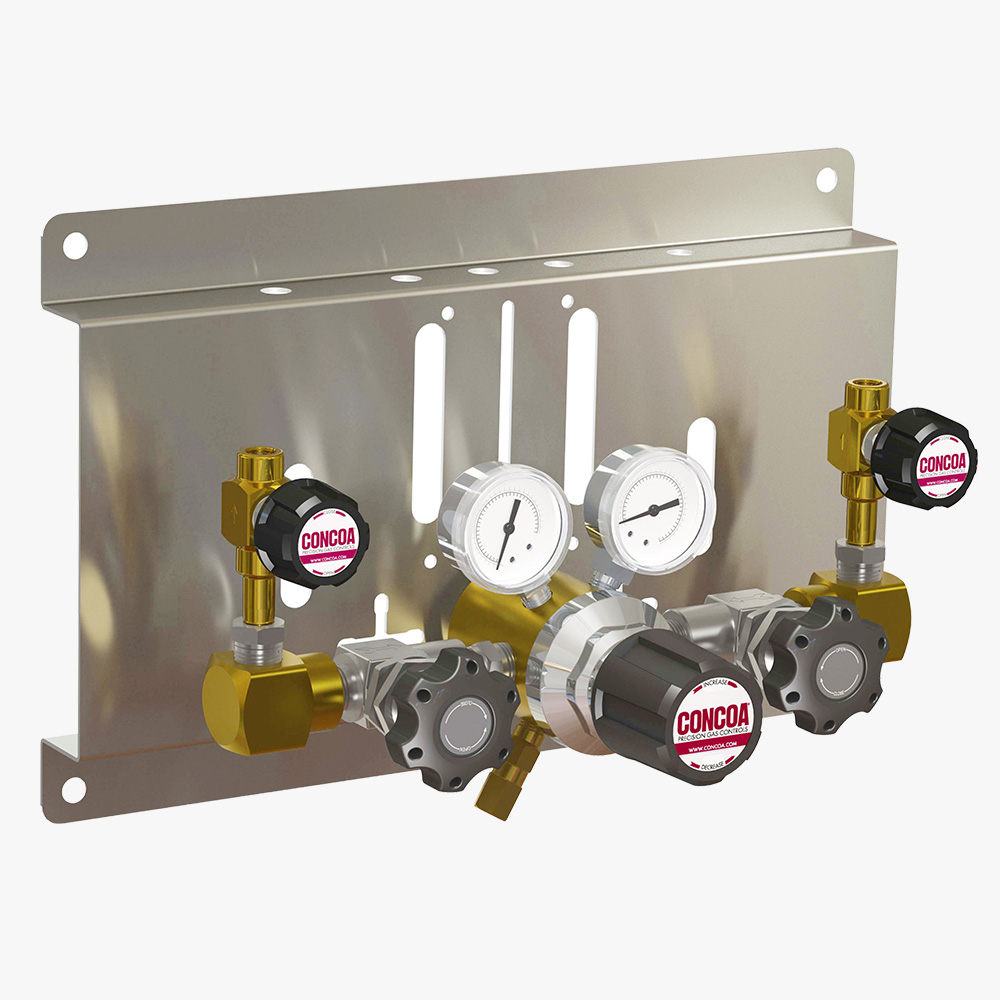

P4B43210-01-001 shown
P4B43210-01-001 P4 high flow central gas manual switchover panel

The P4 Series High Flow Central Gas Manual Switchover Panel is designed for primary pressure control from two bulk sources. The panel provides a modular design to mount and locate the ultra-high purity 400 Series single stage regulator. The P4 Manual Switchover Panel is available with either a brass barstock regulator (P4B) for use with research and ultra-high purity gases (up to grade 6.0+), or a stainless steel regulator (P4S) for use with toxic, corrosive, or reactive gases. Integrated purge options, such as full-flow process purge or low flow micro-purge, enhance system flexibility for various application requirements. Manufactured in an ISO 9001:2015 certified facility, each P4 panel is 100% Helium leak checked and cleaned for oxygen service.

  • Manual switchover with right and left inlets ensure continuous gas supply
  • Integral process purge or inert gas micro purge options maintain gas purity and extend equipment life
  • Metal-to-metal seals ensure high leak integrity and prevent contamination
  • Variety of outlet pressures and orientations support a broad range of applications
  • CAPSULE® seat design with 10-micron filtration provides long service life and reliable performance
  • Stainless steel convoluted diaphragm prevents inboard diffusion
  • Modular stainless steel panel with optional piped-through outlet permits flexible installation and operation
  • Max inlet pressure: 3000 PSIG (210 BAR) regulator; 3500 PSIG (240 BAR) diaphragm valves
  • Temperature range: -40°F to 140°F (-40°C to 60°C)
  • Helium leak integrity: 1 x 10⁻⁸ scc/sec
  • Cv: 0.1
  • Body (regulator and valves): 316L stainless steel barstock (P4S); or brass barstock (P4B)
  • Bonnet: Chrome-plated die cast zinc
  • Gauges: 2 in (50 mm) diameter and stainless steel case with stainless steel stem and tube (P4S);
    or plated brass case with plated brass stem and copper alloy tube (P4B)
  • Seat (regulator and valves): PCTFE
  • Diaphragm: 316L stainless steel (regulator); Elgiloy® (valves)
  • Filter: 40-micron 316L stainless steel
  • Seals: metal-to-metal
  • Panel: 2mm 304 stainless steel
  • Conformances: Cleanliness meets or exceeds CGA G-4.1; PED 2014/68/EU; ANSI/ASME B40.1; CRN OH5216.5
